Postoperative chemoradiotherapy is recommended for patients with head and neck squamous cell carcinoma with positive margins or extracapsular extension at high risk of recurrence. However, high-dose radiotherapy in the head and neck region often causes severe acute and late radiation-related adversities. In our institution, the radiation dose has been relatively lower than that used in Western countries to reduce radiation-related toxicities. Therefore, in this study, we examined the treatment outcomes of low-dose postoperative chemoradiotherapy.
The outcomes of 90 consecutive head and neck squamous cell carcinoma patients who received postoperative radiotherapy between June 2009 and December 2016 were retrospectively analyzed. All patients received postoperative three-dimensional conformal radiotherapy with or without concurrent systemic chemotherapy. The median patient age was 65 years. Concurrent chemoradiotherapy was administered at a total dose of 50.4 Gy in 28 fractions (daily fraction, 1.8 Gy). High-risk patients received 10.8 Gy of boost irradiation in six fractions. For radiotherapy alone, the irradiation dose was up to 54 Gy in 30 fractions and 64.8 Gy in 36 fractions for high-risk patients to increase the treatment intensity.
The median follow-up period was 40.5 months. The 3-year locoregional control and overall survival rates were 67.5% and 82.7%, respectively. A significantly higher proportion of patients with oral cavity carcinoma experienced locoregional failure (p = 0.004). The acute adverse events were mild, and the only late adverse event was grade 3 dysphagia (n = 3).
This study suggests that de-escalation of the postoperative radiation dose can potentially reduce the severe adverse events of irradiation in patients while ensuring its effectiveness. In patients with oral cavity carcinoma, it might be necessary to increase the radiation dose.
Two essential trials tested the benefit of postoperative chemoradiotherapy in patients with head and neck squamous cell carcinoma (HNSCC). In 2004, the European Organization for Research and Treatment of Cancer (EORTC) and Radiation Therapy Oncology Group (RTOG) published the results of two phase III trials (EORTC 22931 and RTOG 95–01). The studies compared concurrent postoperative chemoradiotherapy using tri-weekly 100 mg/m2 cisplatin (CDDP) with postoperative radiotherapy alone [1, 2]. Radiotherapy administered in both arms consisted of 60 Gy with or without a 6-Gy boost (RTOG) or administration of 66 Gy (EORTC) . Although the definitions of risk factors for recurrence in the two trials differed, Bernier et al. conducted a comparative analysis using data pooled from the EORTC 22931 and RTOG 95–01 studies to identify which patients require adjuvant concomitant chemoradiotherapy following surgery. They concluded that close and/or positive margins at the site of resection of the primary lesion and extracapsular extension (ECE) of nodal metastasis were the most significant predictors of poor outcomes . Therefore, postoperative chemoradiotherapy with CDDP is recommended for patients with HNSCC with positive margins or ECE at high risk of recurrence. The current National Comprehensive Cancer Network (NCCN) guidelines recommend a radiation dose of 60–66 Gy (2 Gy/fraction) for high-risk areas and 44–50 Gy (2 Gy/fraction) to 54–63 Gy (1.6–1.8 Gy/fraction) for low-to-intermediate-risk areas . However, high-dose radiotherapy in the head and neck region often causes severe dermatitis and mucositis during treatment. This treatment can also cause late adverse events such as xerostomia, loss of the sense of taste, and long-term percutaneous endoscopic gastrostomy (PEG) tube dependence, which are highly distressing. In our institution, the radiation dose for patients with postoperative HNSCC has been relatively lower than that used in Western countries in an attempt to reduce acute and late radiation-related toxicities. Therefore, in this study we examined the treatment outcomes of low-dose postoperative chemoradiotherapy.
Study design and institutional review board approval
We performed a retrospective chart review of patients with HNSCC who received postoperative radiotherapy with or without chemotherapy. This single-center, retrospective study was approved by our institutional ethical review board (Permission number: 1639).
In this study, we included patients with head and neck cancer who underwent radical surgery followed by radiotherapy at our hospital between June 2009 and December 2016, regardless of any risks. Patients whose general conditions deteriorated before radiotherapy or patients who had distant metastases detected before radiotherapy were excluded. Furthermore, we excluded patients with adenoid cystic carcinoma or sarcoma considering the fact that we targeted squamous cell carcinoma. We also excluded patients who underwent intensity-modulated radiation therapy (IMRT) because IMRT, which had been recently introduced in our institution during the study period, was not widely used, especially in the postoperative period. Assessing the impact of IMRT in the small number of patients who received IMRT would have been difficult; therefore, only patients who received three-dimensional conformal radiotherapy (3D-CRT) were included in the current study. A total of 106 consecutive patients were registered, and eventually, 90 patients were enrolled in the study (Fig. 1). All patients underwent computed tomography (CT), magnetic resonance imaging, and endoscopy of the head and neck as pretreatment evaluations before undergoing surgery. Positron emission tomography was performed if necessary.
All radiotherapy plans were conducted using a volumetric CT-based three-dimensional treatment planning system (Eclipse™; Varian Medical System, Inc.). The patients were treated in the supine position using a thermoplastic mask for immobilization. Radiotherapy was prescribed in 1.8-Gy fractions with 4- or 6-MV photons from a linear accelerator (Clinac® iX; Varian Medical Systems, Inc.) in three-dimensional conformal radiotherapy (3DCRT). For each patient, the radiation field and dose were formulated with the input of a multidisciplinary team that included a radiation oncologist, head and neck surgeon, and radiologist. Target volumes were defined as follows: the high-risk clinical target volume (CTV) was defined as areas considered at high risk of recurrence for a positive surgical margin and/or lymph node with ECE, based on pathological findings. The prophylactic CTV was defined as areas that included the entire operative bed and elective lymph node levels, including the levels II–V nodes, supraclavicular nodes, and retropharyngeal nodes. In the patients with oral cavity cancers, levels Ia and Ib were also included electively. Circumferential 5-mm expansion of the corresponding CTV gave rise to the planning target volume. For concurrent chemoradiotherapy, a total dose of 50.4 Gy was delivered in 28 fractions to the prophylactic area. High-risk patients received 10.8 Gy of boost irradiation in 6 fractions to the high-risk areas. For radiotherapy alone, the irradiation dose was up to 54 Gy in 30 fractions and 64.8 Gy in 36 fractions for high-risk patients to increase the treatment intensity.
The patients were treated with concurrent systemic therapy in accordance with the recommendation of the multidisciplinary team in consideration of clinicopathologic factors and patient characteristics. Chemotherapy mainly consisted of CDDP or nedaplatin (CDGP). CDDP was administered at a dose of 100 mg/m2 every 3 weeks. CDGP is a CDDP analog developed to decrease the toxicities induced by the parent drug, such as nephrotoxicity and gastrointestinal toxicity . CDGP was administered at a dose of 90 mg/m2 every 4 weeks. In some cases, we also added 5-fluorouracil 800 mg/m2 or docetaxel 60 mg/m2. Carboplatin was used for patients with impaired renal function. We performed radiation therapy alone only at patients with specific conditions such as severe renal or hepatic dysfunction or very elderly patients.
During treatment, adverse events were graded according to the Common Terminology Criteria for Adverse Events version 4.0. After completing the treatment, the patients were followed up every 1–2 months for the first year and every 3–4 months for 4 successive years. The current study endpoints included overall survival (OS), disease-free survival (DFS), locoregional control (LRC), and adverse events.
Time-to-event analyses were performed using the Kaplan–Meier method for several outcome measures. OS was calculated from the initiation of postoperative radiation to death from any cause. DFS was calculated from the initiation of postoperative radiation to any relevant events, including local, regional, and distant recurrence. LRC was calculated from the initiation of postoperative radiation to local and/or regional recurrence. For DFS and LRC, patients who died without experiencing any of these events were censored at the time of the last follow-up. To identify the clinicopathological factors influencing treatment outcome, univariate and multivariate analyses were performed using Cox regression analysis. The statistical significance of differences between the groups was evaluated using the log-rank test. The level of statistical significance was set at p < 0.05. All statistical analyses were conducted using EZR ver. 1.41 (Saitama Medical Center, Jichi Medical University, Saitama, Japan), a graphical user interface for R (The R Foundation for Statistical Computing, Vienna, Australia). More precisely, it is a modified version of R commander designed to add statistical functions frequently used in biostatistics .
The outcomes of 90 consecutive patients who received postoperative radiotherapy for HNSCC between June 2009 and December 2016 were analyzed. The patients’ characteristics are summarized in Table 1. Of the patients, 74 (82%) were men and 16 (18%) were women, with a median age of 65 years (range, 27–88 years). The distribution of the primary disease sites was as follows: oral cavity, 50 (56%) patients; hypopharynx, 27 (30%); oropharynx, 9 (10%); and larynx, 4 (4%). Among the nine patients with oropharyngeal carcinoma, only one patient was p16-positive whereas four patients were p16-negative and the status was unknown in the remaining four patients. The clinical stages of the patients were distributed as follows: stage II disease, 1 patient (1%); stage III disease, 10 (11%); stage IVA disease, 78 (87%); stage IVB disease, 1 (1%). Concerning the histopathological findings, 17 patients (19%) had an ECE in the resected lymph nodes, 8 (9%) had a positive margin at the resection site of the primary disease, and 21 (23%) had either a positive margin or an ECE.
The treatment details are summarized in Table 2. The median interval from the last surgery to the initiation of postoperative radiotherapy was 42 days (range, 14–77 days). All patients were able to complete their scheduled radiation treatment. The median prescribed dose was 50.4 Gy (range, 50.4–66.6 Gy). Eighty-four patients (93%) underwent prophylactic bilateral neck irradiation. Six elderly and fragile patients (7%) received unilateral neck irradiation because both the primary tumor and lymph nodes were confined to one side. Most patients received the dose as per protocol. Nevertheless, 2 patients with hypopharynx and tongue cancers received 66.6 Gy of radiation owing to the presence of a very high risk of recurrence, and the multidisciplinary team recommended a dose increase.
Sixty-eight patients (76%) underwent concurrent chemotherapy with postoperative radiotherapy. The most common chemotherapy regimen was CDGP + 5FU in 32 patients (47%), followed by CDDP alone in 13 patients (19%). The anti-cancer agents used in this study were diverse because the otolaryngology or oral surgery departments handled chemotherapy.
OS, DFS, and LRC

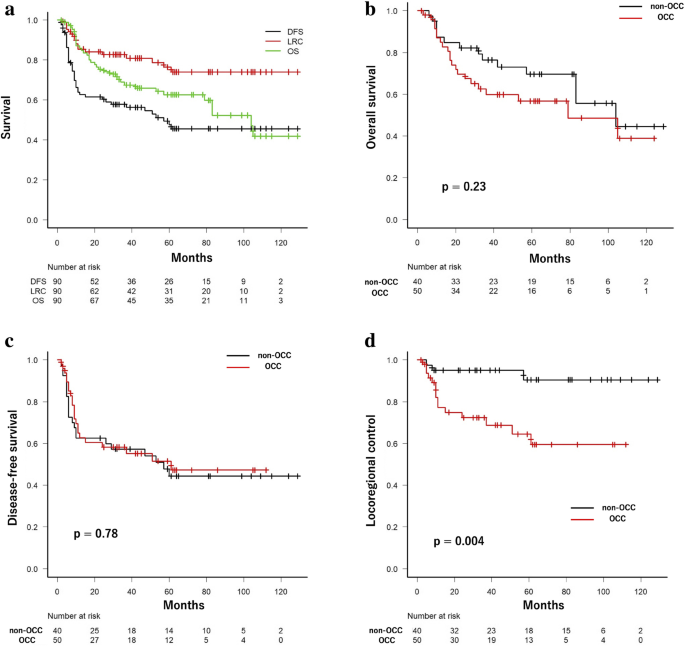

The median follow-up period was 40.5 months (range, 2–129). The 3-year OS, DFS, and LRC rates were 67.5%, 57.8%, and 82.7%, respectively (Fig. 2A). Comparing the oral cavity carcinoma (OCC) group and those without, the 3-year OS rates in the OCC and those without were 59.9% and 76.4%, respectively (p = 0.23; Fig. 2B). The 3-year DFS of the two groups were 57.3% and 58.2%, respectively (p = 0.78; Fig. 2C). The 3-year LRC of the two groups were 72.3% and 95.0%, respectively (p = 0.004; Fig. 2D). The 3-year LRC rate was significantly lower in the OCC group.
Owing to the statistically significant differences in LRC between the non-OCC and OCC groups, we compared patient backgrounds and treatment details between the two groups. The data are summarized in Tables 3 and 4. Among the patient characteristics, the clinical stage and T classification were more advanced in the non-OCC group, and the proportions of females and patients with ECEs were higher in the OCC group. We found no significant intergroup differences in the other factors such as age and positive margin. Among the treatment details, radiation dose showed no significant differences. For the radiation field, six patients in the OCC group received unilateral radiotherapy. No statistically significant difference in boost irradiation or concomitant chemotherapy was noted between the two groups, but the chemotherapy regimens were diverse and not uniform. CDDP tended to be used more frequently in the OCC group.
Patterns of recurrence
The patterns of the first relapse in the two groups are summarized in Table 5. In total, 43 patients experienced disease relapse after treatment, including 18 locoregional recurrences and 29 distant metastases. Statistically significant differences in locoregional and prophylactic area failures were noted between the two groups (p = 0.009 and p = 0.045). Figure 3 outlines the patterns of locoregional recurrence; four patients developed a boost area recurrence; 16, locoregional recurrence; and 1, extra field recurrence. Among the patients with a boost recurrence, three had a synchronous locoregional recurrence. Among the nine patients with oropharyngeal carcinoma, one patient who was p16-negative had locoregional recurrence whereas two patients with unknown p16 status had distant metastases. The only patient who was p16-positive did not have recurrence.
The clinicopathological factors influencing the locoregional outcomes are listed in Table 6. Univariate analysis indicated that the tumor site influenced locoregional failure in the OCC group (hazard ratio = 5.29, 95% confidence interval = 1.41–19.8, p = 0.01). In the multivariate analysis, since 18 patients had a locoregional recurrence, two variables were used, namely, tumor site and the presence of concurrent chemotherapy, on the basis of previous studies and medical perspectives [7,8,9,10]. Furthermore, lower locoregional control was associated with oral cancer.
Adverse events are summarized in Table 7. Acute adverse events of grade 3 or higher were mucositis, dermatitis, dysphagia, leukopenia, thrombocytopenia, and no others.
The only severe late adverse event was dysphagia and no others. Three patients were dependent on a PEG tube 12 months after the treatment. There were no cases of severe toxicities associated with flap reconstruction.
In this study, we analyzed the outcomes of postoperative radiotherapy performed at our institution. Although the irradiation dose used at our institution was relatively lower than that employed in Western countries, the treatment outcomes appeared comparable to previous findings [1, 2, 7, 9, 11, 12] (Table 8). Alternatively, locoregional control was significantly worse in the patients with than in those without OCC, even though we delivered the same radiation dose in both groups. In the current global standard for postoperative radiotherapy for head and neck cancers, the treatment intensity does not differ between OCC and non-OCC. However, several previous studies reported poor locoregional control of OCC in head and neck cancers, which suggests the limitations of the current treatments [9, 11, 13]. Considering the poor locoregional control observed in patients with OCC in this study, higher treatment intensity may be required for this malignancy, such as dose escalation in the cervical prophylactic area.
The present study included only the patients who received 3D-CRT, and those who received IMRT were excluded due to the very small number of IMRT cases. IMRT is currently accepted for patients with head and neck cancer because it allows increasing the dose while reducing the risk of adverse events. However, there are several challenges associated with the administration of IMRT, especially in postoperative situations. First, the tumor has been surgically removed; therefore, the CTV for IMRT is often challenging to determine. Second, IMRT may increase the risk of marginal recurrence by excessively narrowing the target volume [9, 11, 13]. Although these challenges remain, with IMRT, the dose can be escalated in the cervical prophylactic area without increasing the dose to the surrounding normal tissue such as the mandible or salivary glands. It appears likely that dose escalation in the prophylactic area in patients of OCC will improve the LRC rate. Further research is needed to determine whether this strategy will improve the LRC rate.
Acute and late adverse events were also comparable to or less severe than those identified in previous studies [9,10,11,12, 14]. In head and neck cancer, in particular, long-term PEG tube dependence is often a problem [15, 16], but few patients required a PEG tube for longer than 1 year in our study.
This study has several limitations. First, in this study, the proportion of patients with close/positive margins or ECEs was smaller than those in previous studies, which might have led to overestimation of the treatment results. Indeed, the number of high-risk cases was small, but of the 40 patients in the non-OCC group, only three (8%) had a locoregional recurrence, all in the prophylactic area. No recurrence was observed in the boosted areas. Therefore, especially for the non-OCC group, we believe that it might be possible to reduce the irradiation dose of the prophylactic area. Second, this study was a single-institution retrospective experience, and the small sample size might be insufficient for drawing definitive conclusions. Third, adverse events could not be thoroughly assessed, and they were likely underestimated because of the study’s retrospective nature. Fourth, because the otolaryngology or oral surgery department handled chemotherapy, there was no unified systemic chemotherapy regimen. The chemotherapy regimen was not standardized, which might have affected the results. Prospective clinical trials will be needed to overcome these limitations.
This study suggests that de-escalation of the radiation dose in patients with non-OCC can potentially reduce the severe adverse events of irradiation while ensuring its effectiveness. However, in patients with OCC, it might be necessary to increase the radiation dose.
Availability of data and materials
The datasets used and analyzed during the current study are available from the corresponding author on reasonable request.
Head and neck squamous cell carcinoma
European Organization for Research and Treatment of Cancer
Radiation Therapy Oncology Group
National Comprehensive Cancer Network
Percutaneous endoscopic gastrostomy
Intensity-modulated radiation therapy
Three-dimensional conformal radiotherapy
Clinical target volume
Oral cavity carcinoma
Bernier J, Domenge C, Ozsahin M, Matuszewska K, Lefèbvre J-L, Greiner RH, et al. Postoperative irradiation with or without concomitant chemotherapy for locally advanced head and neck cancer. N Engl J Med. 2004;350:1945–52.
Cooper JS, Pajak TF, Forastiere AA, Jacobs J, Campbell BH, Saxman SB, et al. Postoperative concurrent radiotherapy and chemotherapy for high-risk squamous-cell carcinoma of the head and neck. N Engl J Med. 2004;350:1937–44.
Bernier J, Cooper JS, Pajak TF, Van Glabbeke M, Bourhis J, Forastiere A, et al. Defining risk levels in locally advanced head and neck cancers: a comparative analysis of concurrent postoperative radiation plus chemotherapy trials of the EORTC (#22931) and RTOG (#9501). Head Neck Pathol. 2005;27:843–50.
Makita C, Kodaira T, Daimon T, Tachibana H, Tomita N, Koide Y, et al. Comparisons of the clinical outcomes of different postoperative radiation strategies for treatment of head and neck squamous cell carcinoma. Jpn J Clin Oncol. 2017;47:1141–50.
Murakami N, Matsumoto F, Yoshimoto S, Ito Y, Mori T, Ueno T, et al. Patterns of recurrence after selective postoperative radiation therapy for patients with head and neck squamous cell carcinoma. BMC Cancer. 2016;16:192.
Ooishi M, Motegi A, Kawashima M, Arahira S, Zenda S, Nakamura N, et al. Patterns of failure after postoperative intensity-modulated radiotherapy for locally advanced and recurrent head and neck cancer. JJCO. 2016;46:919–27.
Leeman JE, Li J-G, Pei X, Venigalla P, Zumsteg ZS, Katsoulakis E, et al. Patterns of treatment failure and postrecurrence outcomes among patients with locally advanced head and neck squamous cell carcinoma after chemoradiotherapy using modern radiation techniques. JAMA Oncol. 2017;3:1487–94.
Yao M, Dornfeld KJ, Buatti JM, Skwarchuk M, Tan H, Nguyen T, et al. Intensity-modulated radiation treatment for head-and-neck squamous cell carcinoma--the University of Iowa experience. Int J Radiat Oncol Biol Phys. 2005;63:410–21.
Chan AK, Huang SH, Le LW, Yu E, Dawson LA, Kim JJ, et al. Postoperative intensity-modulated radiotherapy following surgery for oral cavity squamous cell carcinoma: patterns of failure. Oral Oncol. 2013;49:255–60.
Daly ME, Le Q-T, Kozak MM, Maxim PG, Murphy JD, Hsu A, et al. Intensity-modulated radiotherapy for oral cavity squamous cell carcinoma: patterns of failure and predictors of local control. Int J Radiat Oncol Biol Phys. 2011;80:1412–22.
Chen AM, Farwell DG, Luu Q, Chen LM, Vijayakumar S, Purdy JA. Marginal misses after postoperative intensity-modulated radiotherapy for head and neck cancer. Int J Radiat Oncol Biol Phys. 2011;80:1423–9.
Pohar S, Demarcantonio M, Whiting P, Crandley E, Wadsworth J, Karakla D. Percutaneous endoscopic gastrostomy tube dependence following chemoradiation in head and neck cancer patients. Laryngoscope. 2015;125:1366–71.
Magnuson JS, Durst J, Rosenthal EL, Carroll WR, Ritchie CS, Kilgore ML, et al. Increased likelihood of long-term gastrostomy tube dependence in head and neck cancer survivors without partners. Head Neck Pathol. 2013;35:420–5.
WM was involved in study design, data collection, analysis of data, and manuscript writing. HH, SA, YY, and HirM analyzed and interpreted patient data on cancers of the otolaryngological region. AM and TN analyzed and interpreted patient data on cancers of the oral region. KI, TK, HM, and TA were involved in data collection and its analysis of radiotherapy. JH was also in charge of radiotherapy and contributed significantly to the writing of the manuscript. SM has developed the concept and supervised the manuscript. All authors read and approved the final manuscript.
This study was approved by the Ethics Committee of University of the Ryukyus for Medical and Health Research Involving Human Subjects. The date of approval: July 6, 2020. The reference number of the approval: 1639. Consent to Participate: Because this study was retrospective in nature, the requirement for written informed consent from the patients was waived.
Consent for publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
Makino, W., Heianna, J., Ishikawa, K. et al. Patterns of recurrence after low-dose postoperative radiotherapy for head and neck squamous cell carcinoma.
J Egypt Natl Canc Inst33, 40 (2021). https://doi.org/10.1186/s43046-021-00098-w
